Air velocity sensor

Swimming 03

Wind Messer - Draft

Omnidirectional anemometer for low air speeds with USB output.

• Omnidirectional air speed
• 0.05...3m/s at 15...30°C
• Air temperature 10...40°C
• Response time < 0.2 seconds
• Sampling frequency: Max. 100 Hz
• USB port

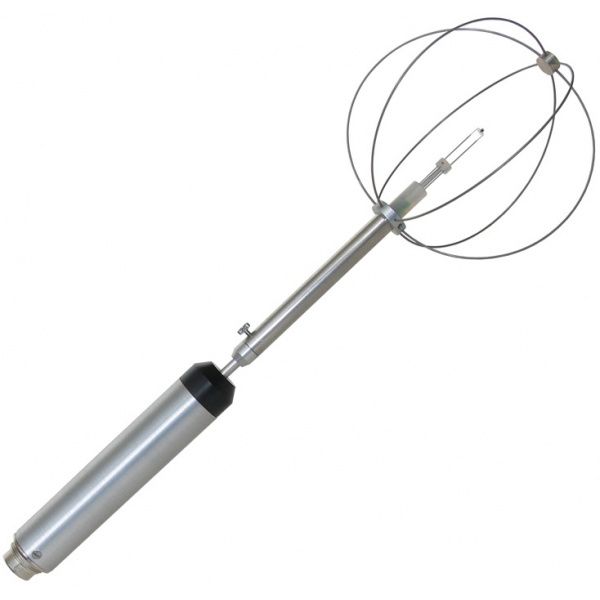

Swimming 03

Wind Messer - Draft

Omnidirectional anemometer for low air speeds with USB output.

Swema 03 has a built-in barometer. The measured air speed is therefore automatically compensated with the actual air density.

Swema 03 meets the requirements of ISO 7726 for use in ISO 7730 – Ergonomics of the thermal environment.

• Omnidirectional air speed
• 0.05...3m/s at 15...30°C
• Air temperature 10...40°C
• barometer
• Response time < 0.2 seconds
• Sampling frequency: Max. 100 Hz
• USB port

Draught sensor SWA 03

For Swema 3000 /md / mdH

SWA 03 meets the requirements of ISO 7726 for use in ISO 7730 – Ergonomics of the thermal environment. The SWA 03 is a tension sensor with particularly good dynamic properties in turbulence.

The Swema 3000 also enables the use of the SWA 03 without a computer for tension measurements in the field.

• Omnidirectional
• Air speed 0.05...3 m/s
• Temperature 10...40 °C
• Response time < 0.2 seconds
• Loose motif (new 20130920)

SWA 32E

wind knife

The SWA 32E probe with Swema 3000 measures 0.1…30m/s and is temperature compensated from -10 to 45°C.

The 116 cm long telescopic shaft has a scale for easy placement in ventilation ducts. The measured value is displayed directly or with multiple points as average, max and min.

• Air speed
• Airflow
• temperature
• 50 cm extension rod

SWA 32

wind knife

The SWA 32 probe fits every Swema 3000 with firmware 5.

• Air speed
• Airflow
• temperature
