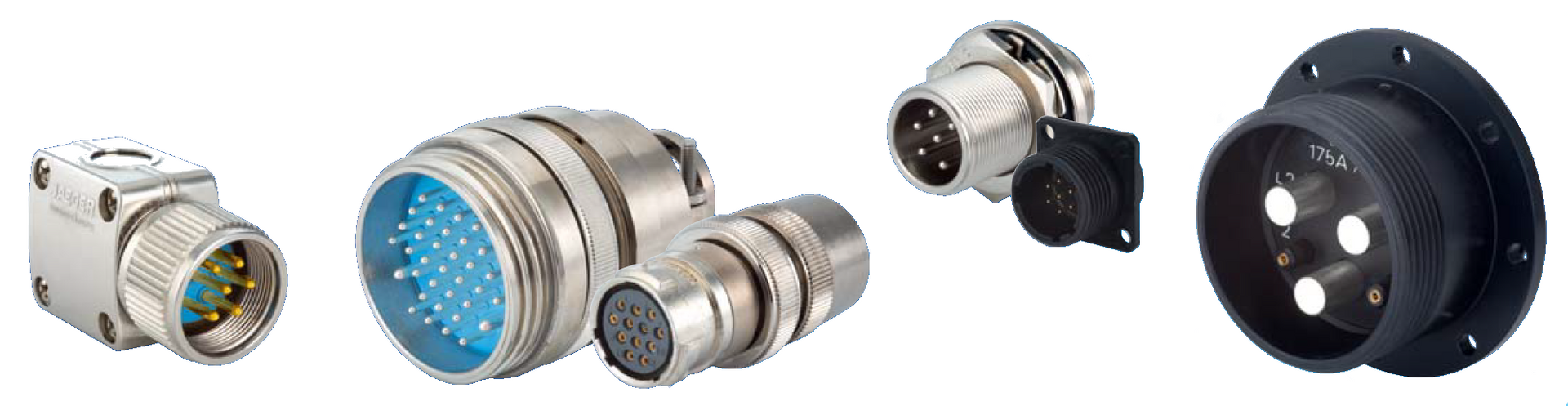

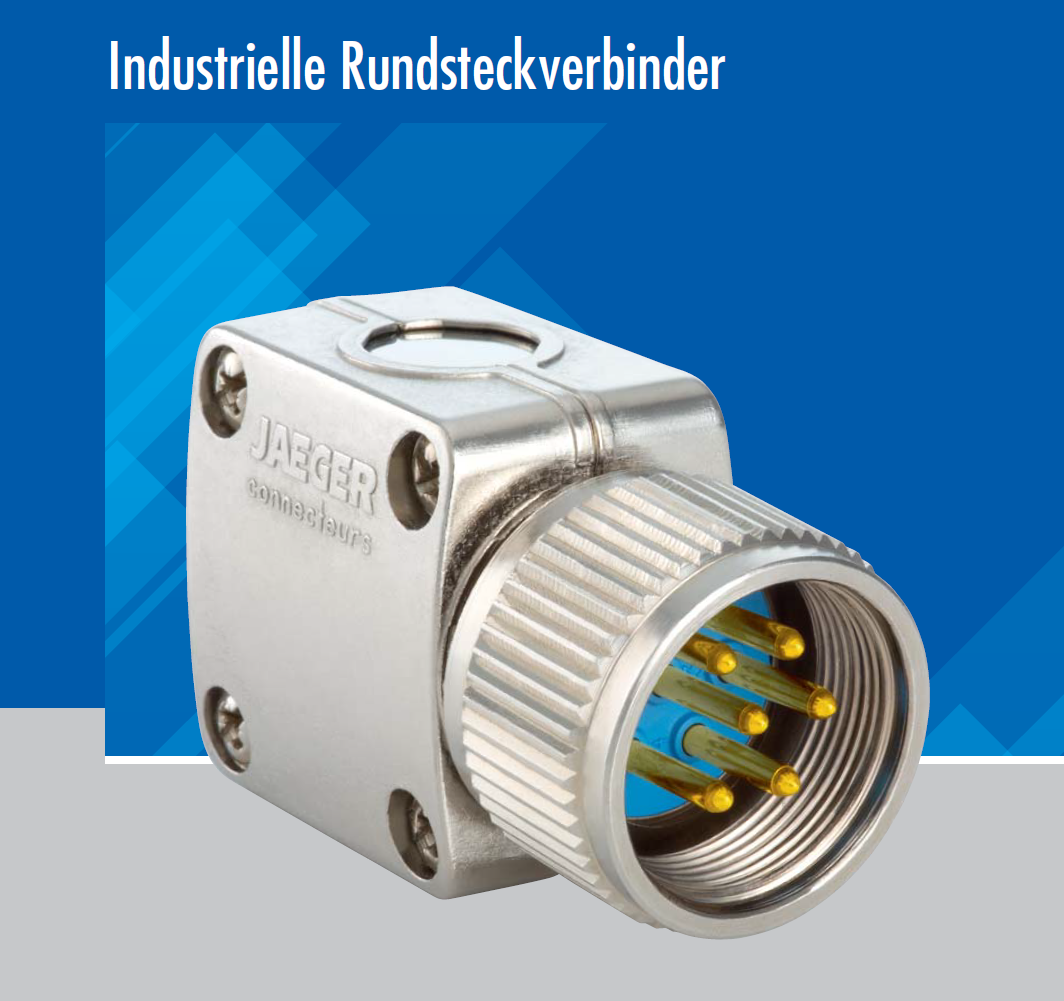

JAEGER Connecteurs - Rundsteckconnector

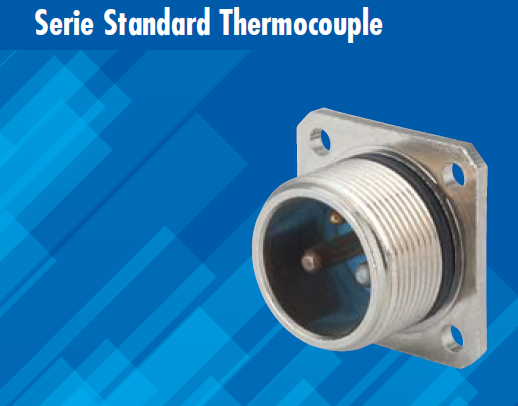

The Thermocouple series was specially developed for applications that require temperature measurement.

• Multipole with 3 solder contacts
• Screw cap

• IP 50 to 54


Rapid is the further development of the standard series and has a quick-release fastener. The Rapid connectors are also available with gold contacts and in a single-contact and high-voltage version.

• Multipole with 3 to 17 solder contacts

• Quick release (1/6 turn)

• IP 50 to 54

• Rectangular housing with three possible cable outlets


The Waterproof series is suitable for environments with splash water. There is also a high-voltage version for special requirements.

• Multipole with 3 to 52 solder contacts

• Screw cap

• IP65

• Round case

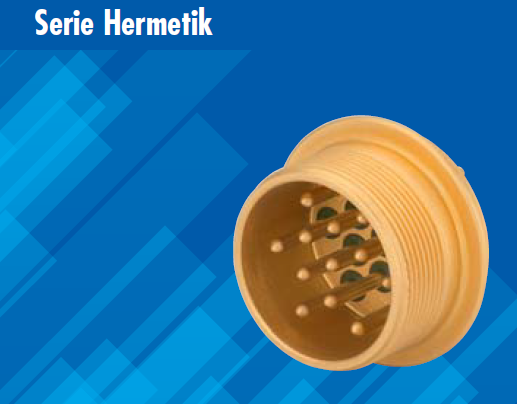

The hermetic series is designed for vacuum environments, high pressure and airtightness.

• Multipole with 3 to 52 solder contacts

• Screw cap

• Helium escape rate: <10^-9 Atm. * cm³ / second

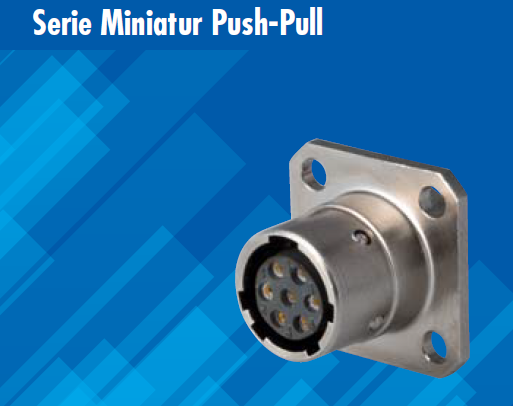

The push-pull series is used where particularly compact solutions are required. The series is also available in a high-voltage version.

• Multipole with 3 to 27 solder or crimp contacts

• Push-pull quick release

• IP65

• Round case


Connectors in the miniature series are characterized by a high contact density. They are available in a waterproof version and in a version with grounding.

• Multipole with 12 to 55 solder or crimp contacts

• Quick release (1/6 turn)

• IP 50 to 65

• Rectangular or round housings

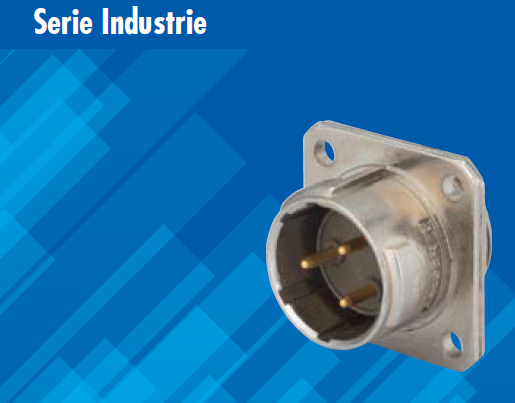

The Industry series offers a wide range of connectors for use in robust industrial environments. Waterproof and high-voltage versions are available, as well as versions for particularly harsh environmental conditions and those with grounding.

• Multipole with 3 to 27 solder or crimp contacts

• Quick release (1/6 turn)

• IP 50 to 65

• Rectangular or round housings

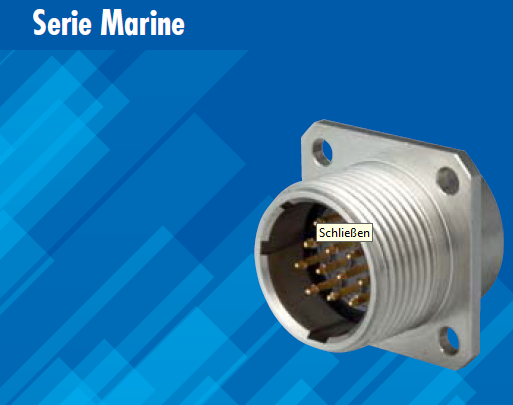

The Marine series is designed for particularly harsh environments. The connectors offer protection against water ingress when submerged and are therefore suitable for underwater connections. They have a high level of corrosion resistance.

• Multipole with 3 to 37 solder or crimp contacts

• Screw cap

• IP68

• Waterproof up to 10 bar

• Material: ARCAP

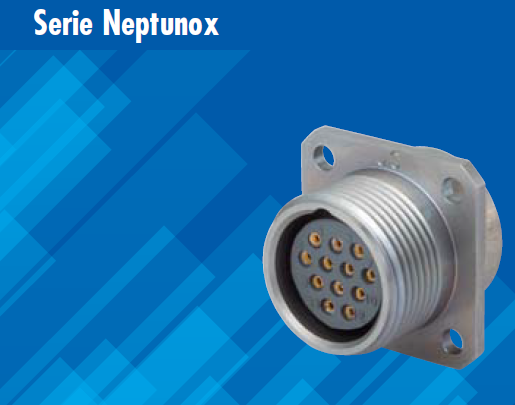

The Neptunox series is a variant of the Marine series with similar features and a particularly attractive price-performance ratio.

• Multipole with 3 to 37 solder or crimp contacts

• Screw cap

• IP68

• Waterproof up to 10 bar

• Material: stainless steel 303

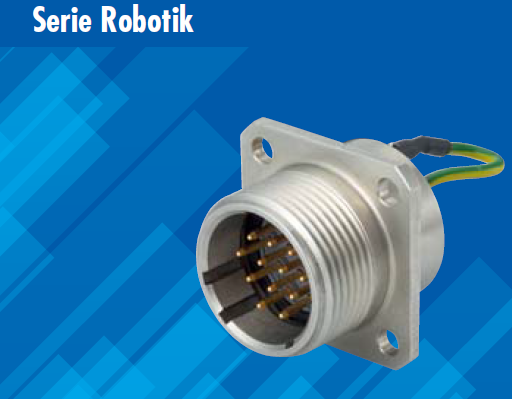

The Robotik series is particularly robust and can withstand strong vibrations. The housing output on the back also accommodates very large cable cross-sections. In the 17-contact Mix version, power and signals can be transmitted together in the same connector
become.

• Multipole with 3 to 37 solder or crimp contacts

• Screw cap

• IP 50 to 65

• Rectangular housing Technical changes


The Minex series connectors are very light,
compact and rustproof. They have excellent performance data.

• Multipole with 3 to 7 solder or crimp contacts

• Screw cap

• IP65

• Material: Plastic POM / PBT

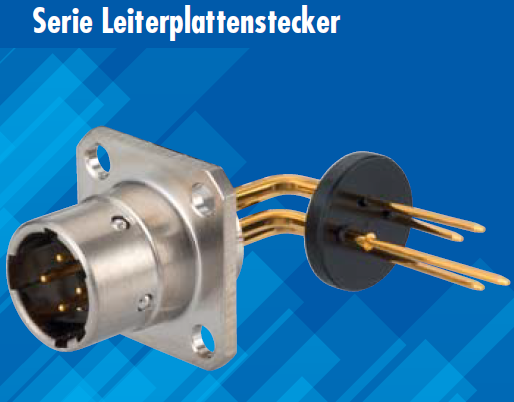

There is a wide range of PCB connectors available with different performance for a wide variety of applications.

• Multipole with 3 to 55 solder contacts

• Contacts for printed circuit boards

• Screw cap / quick release (1/6 turn)

• IP 50 to 65



The Power series was developed for applications where constant high power transmission is required.

• Multipole, 1 to 4 solder or crimp contacts

• Screw cap

• IP 50 to IP 65

• Power: 175 to 300 A

• Plug cross-section: 16 to 95 mm²


• Cable clamps
• Protective caps
• Seals
• Housing for device connectors
• Fastening material
• Earthing set
• links
• spare Parts
• Compound
• Cuffs
• Weld-on socket
• Thread adapter
• Closure and sealing set
• Cable glands
• Union nuts
• contacts
