SwemaMan 7
SwemaMan 7
The

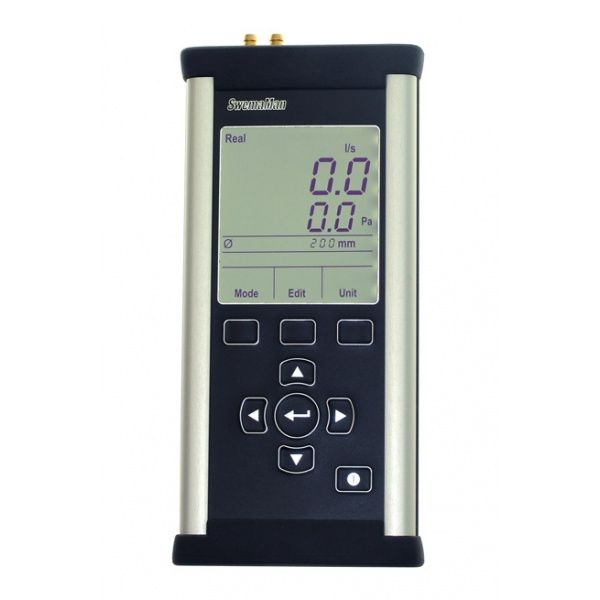

SwemaMan 7 is a micromanometer for measuring:
- Air differential pressure
- Air speed
- Airflow
It has a wide range with good accuracy, low position dependence and a resolution of 0.1 Pa.
Measured values are automatically saved and easily transferred to a PC. It is also possible to set temperature and air pressure for density compensation.
SPECIFICATION SwemaMan 7
| Measuring range | |
|---|---|
| Differential pressure | -1000…9999Pa |
| resolution | 0,1 Pa, 1 Pa to 1000...9999 Pa |
| Air speed | 2...129m/s, 390...9999fpm (calculated) |
| Measurement uncertainty (at 23°C ±5°C) | |
|---|---|
| Differential pressure | ±1 % measured value, min. ±0.5 Pa (after zero setting) |
