Swema Multipoint Mess-PC-Programm

SwemaMultipoint has three separate windows: one for setting up and saving data to files, one for displaying data in online charts, and an ISO 7730 window.
instrumentation
The PC program collects and stores data from up to: six Swema meters and two HygroClip2. The Swema devices can be any combination of Swema 03, 03 , 05 and 3000 with any sensor. The program displays the data in live graphics. The measurement data from all sensors is saved in an individual file that can be opened in Excel. The connection is made via USB cable. A special version of the program is available for using RS485 cables for Swema 03, 03 and 05.

ISO 7730 measurements
For the ISO 7730 setup, the SwemaMultipoint PC program collects data from the three sensors:

• Swema 03/03 – Air speed and temperature
• Swema 05 – Black Globe Temperature
• HC2A-S – Humidity and temperature

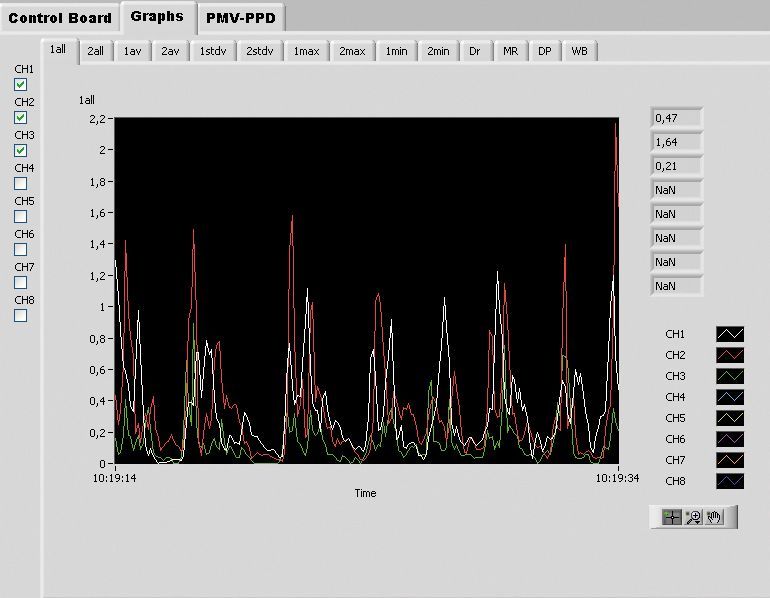

In the ISO 7730 window of the SwemaMultipoint program there is an online presentation of PMV and PPD diagrams. By entering the activity level and the insulation level of the clothing, PMV and PPD are calculated.




Parameters calculated in SwemaMultipoint:

• PMV
• PPD
• Draft
• Mixing Ratio
• Dew Point
• Wet Bulb
• Wet Bulb Globe Temperature
• operating temperatur
