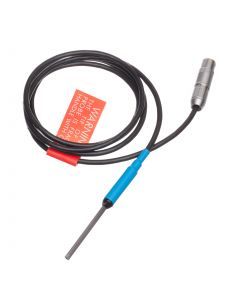

SAH17-1902 Gaussmeter Probe

Gaussmeter probe for series 5100

Designation SAH17-1902


2" axial probe for Gausmeter GM5170


Features
  • Diverse applications
  • Laboratory friendly
  • Factory calibrated according to NIST
  • can be used with GM5180 and GM5170
  • optional: Calibration according to NIST, DAkkS, factory standard

Gaussmeter Sonde SAH17-1902 fuer Gaussmeter von F.W.BELL-Firma Cunz Darmstadt

specification Transverse probe for Gaussmeters GM5170 and GM5180

PARAMETER Value
Trunk length 2"
Trunk thickness 0,187" ± .003"
Cable length 1.524 m (5')
Stammmaterial Rigid phenols
Corrected linearity 1,0% / 20 kG
sensitivity 1X
operating temperatur 0°C to 75°C
Frequency response DC bis 10 kHz
