GM5170 Gaussmeter-Teslameter

Gaussmeter 5170

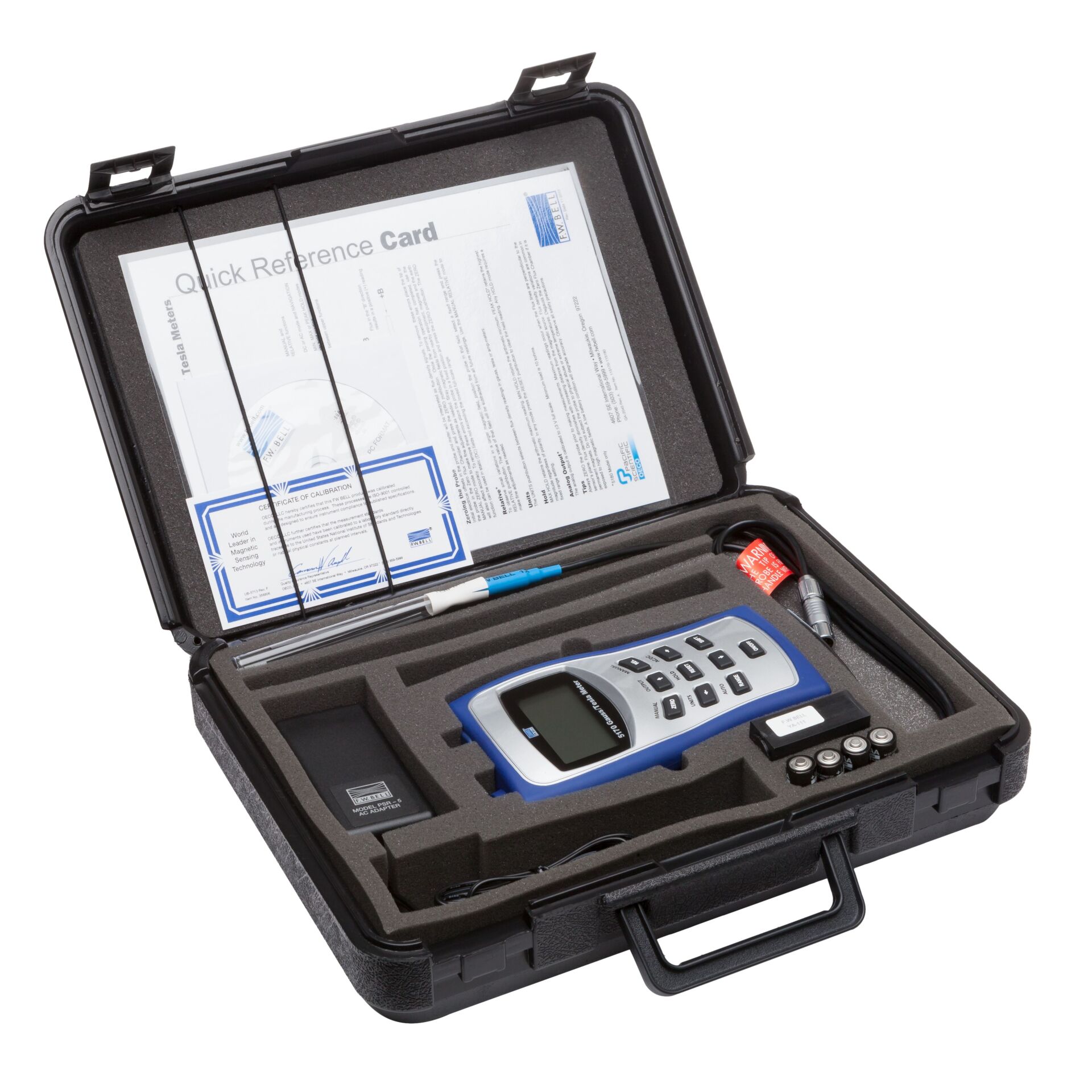

Gaussmeter 5170 case set, contains Gaussmeter 5170, transverse probe STH17-0404, zero Gauss chamber YA-111 and international power adapter

Optionally, the device can be ordered with a calibration certificate


Functions of the Gaussmeter 5170
  • Probes interchangeable
  • automatic zeroing
  • Min/Max/Peak
  • Car area
    •
  • Handheld Gaussmeter
    •
  • Operation with battery or power supply
    •


Gaussmeter+5170_f.w.bell_cunz

SPECIFICATION GAUSSMETER 5170

PARAMETER VALUE
Basic DC accuracy 2%
frequency DC - 20 kHz
Measuring range 1G (low field probe only) - 20kG
resolution 1mG - 10G
units Gauss, Tesla, A/m
Analog output no
operating temperatur 0°C to 50°C
Batteries 4 AA
Dimension Gaussmeter ca. 18 x 10 x 3,7 cm
Weight Suitcase set approximately 1.7 kg

Suitable Hall effect probes for the Gaussmeter 5170

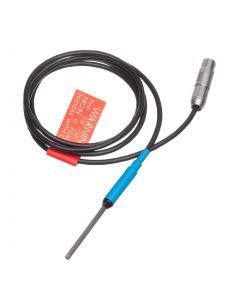

Axialsonde

axial probe

SAH 17-1902

Gaussmeter-Sonde+STD18-0404

Transversalsonde

STD 18-0404

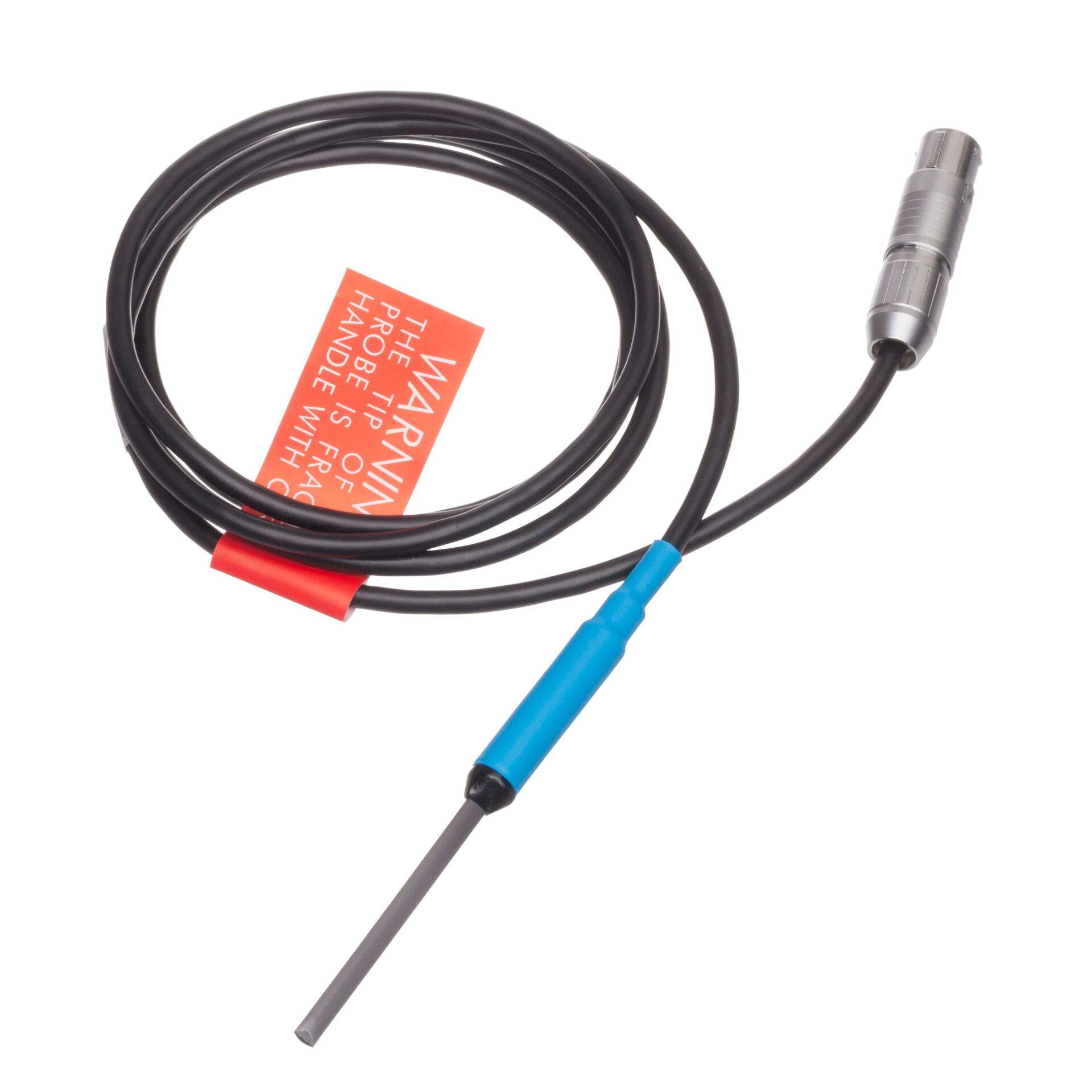

Gaussmeter-Sonde+STH17-0404

Transversalsonde

STH 17-0402

gaussmeter-sonde-mos51-3204

Low field probe

MOS51-3204
