GM8010 Gaussmeter-Teslameter

Gaussmeter 8010

Gaussmeter 8010 is a high precision 1-axis Gaussmeter from the manufacturer FWBELL , 1-channel table device for the connection of a transverse or axial probe.

Optionally, the device can be ordered with a calibration certificate


Functions of the Gaussmeter 8010
  • large selection of probes
  • automatic zeroing
  • Min/Max/Peak
  • Car area
    •
  • Gaussmeter
    •
  • -Desktop device with integrated power supply
    •
  • Intuitive menu control of the
  • Gaussmeter
  • can be operated with temperature compensated probes
    •

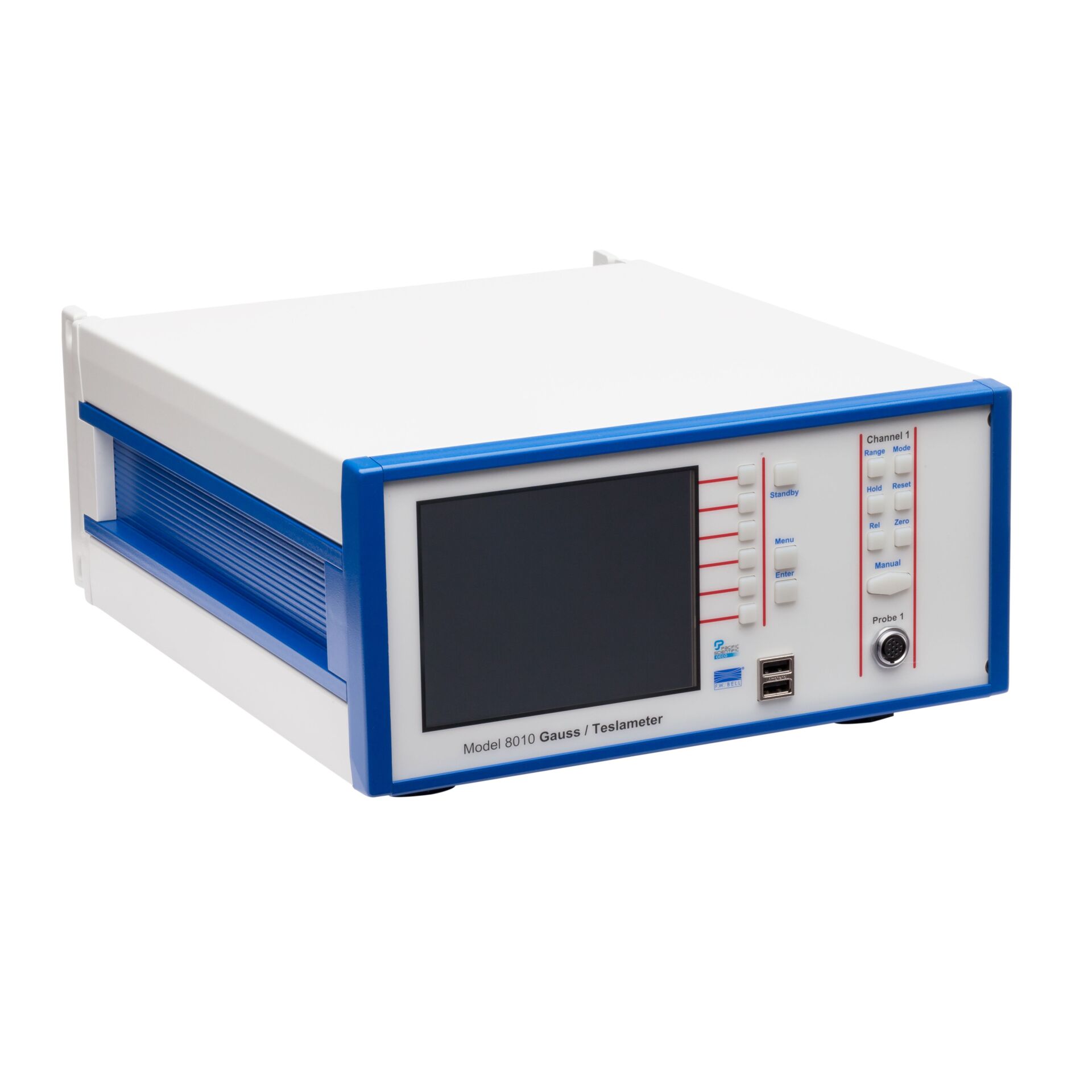

Gaussmeter+8010_F.W.Bell_Cunz+Messtechnik

SPECIFICATION GAUSSMETER GM8010

PARAMETER VALUE
Basic DC accuracy ±0.05% of measured value and ±0.01% of measuring range
frequency DC - 25 kHz
Measuring range 1G to 30kG
resolution 1mG - 10G
Readings 4/sec screen, 100K/sec (analog)
Analog output and
operating temperatur
dimension 292 x 132 x 368 mm
Weight here. 5.3 kg
Interfaces
