GM5270 Gaussmeter-Teslameter

Gaussmeter 5270

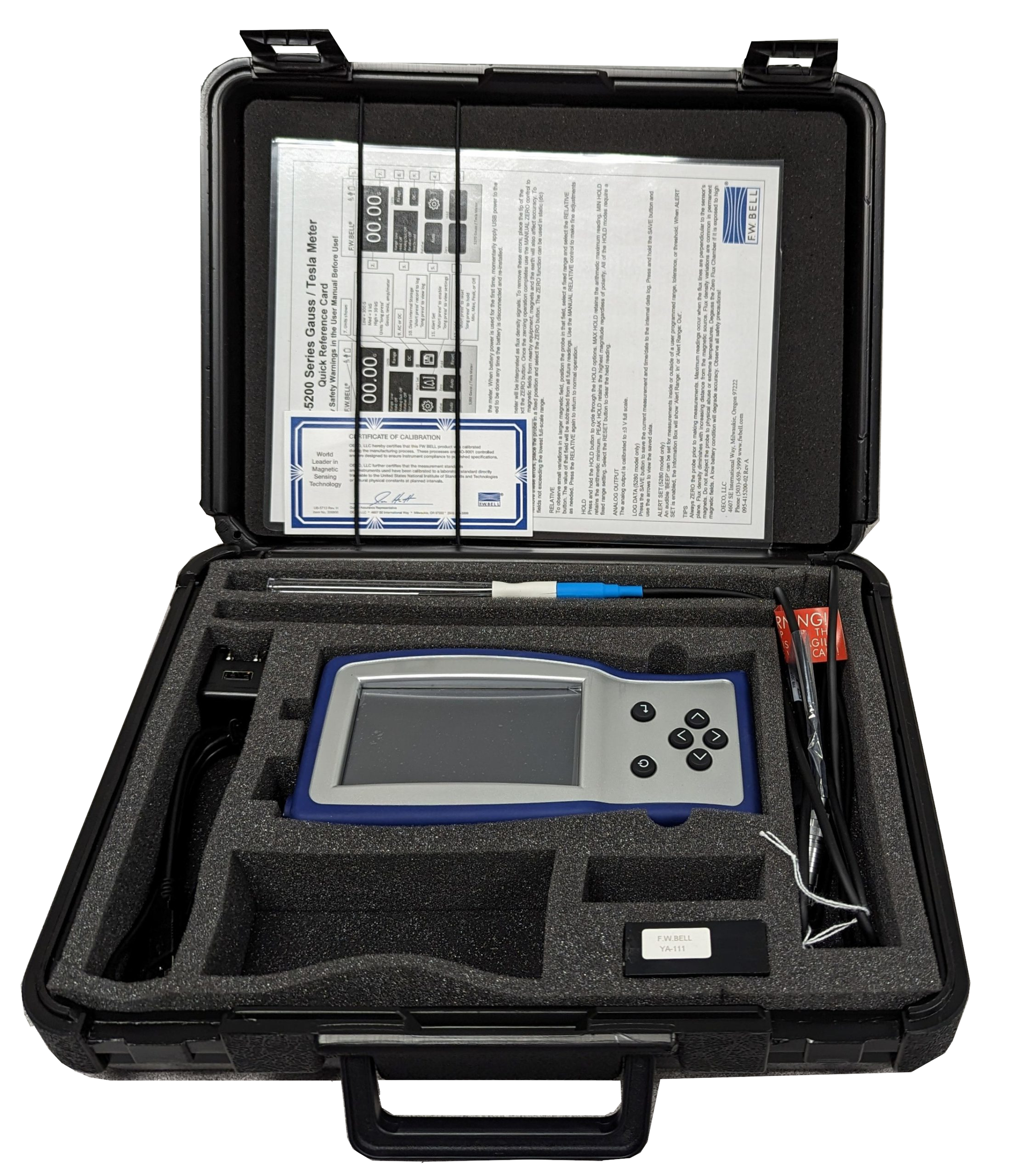

Gaussmeter 5270 case set, contains Gaussmeter 5270, transverse probe STH17-0404, zero Gauss chamber YA-111 and international power adapter

Optionally, the device can be ordered with a calibration certificate


Features and Benefits of the Gaussmeter 5270
  • 4.3-inch LCD touchscreen
  • Probes interchangeable
  • automatic zeroing
    •
  • Min/Max/Peak
  • USB-C 2.0
    •
  • Option for remote control via PC
    •
  • 10 to 14 hours operating time with rechargeable Li-ion battery
    •


GM5270+Koffer+Sonde+Nullgausskammer

SPECIFICATION GAUSSMETER 5270

PARAMETER VALUE
Basic DC accuracy 2%
frequency DC - 20 kHz
Measuring range 1G - 20kG
resolution 1mG - 10G
units Gauss, Tesla, A/cm
Analog output And
operating temperatur 0°C to 50°C
Power supply rechargeable Li-ion battery
Dimension Gaussmeter ca. 20,32 x 9,78 x 4,75 cm
Weight Suitcase set here. 1.7kg

Suitable Hall effect probes for the Gaussmeter 5270

Axialsonde

axial probe

SAH 17-1902

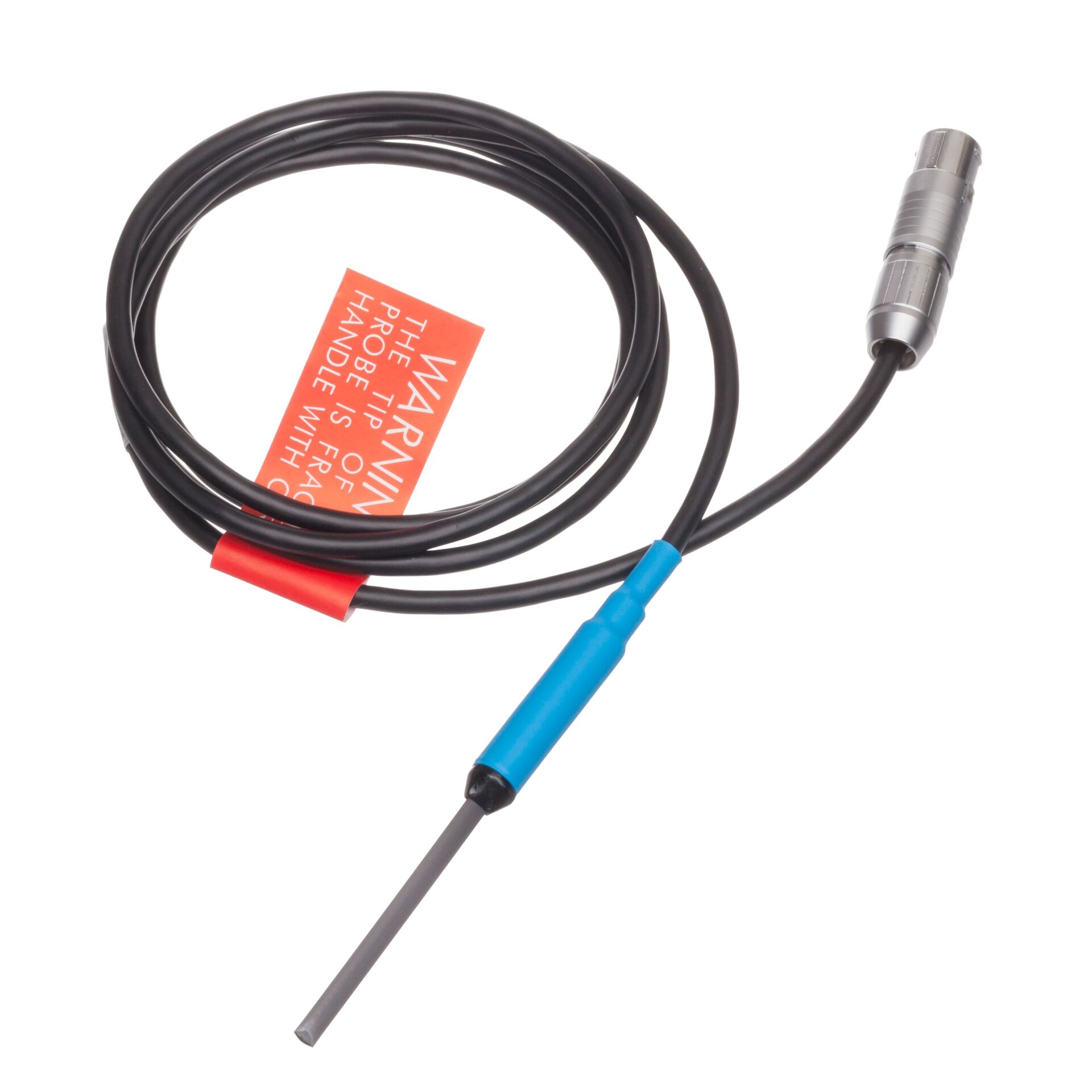

Gaussmeter-Sonde+STH17-0404

Transversalsonde

STH 17-0402

Gaussmeter Sonde STH17-0402 fuer Gaussmeter von F.W.BELL-Firma Cunz Darmstadt

Transversalsonde

STH 17-0404

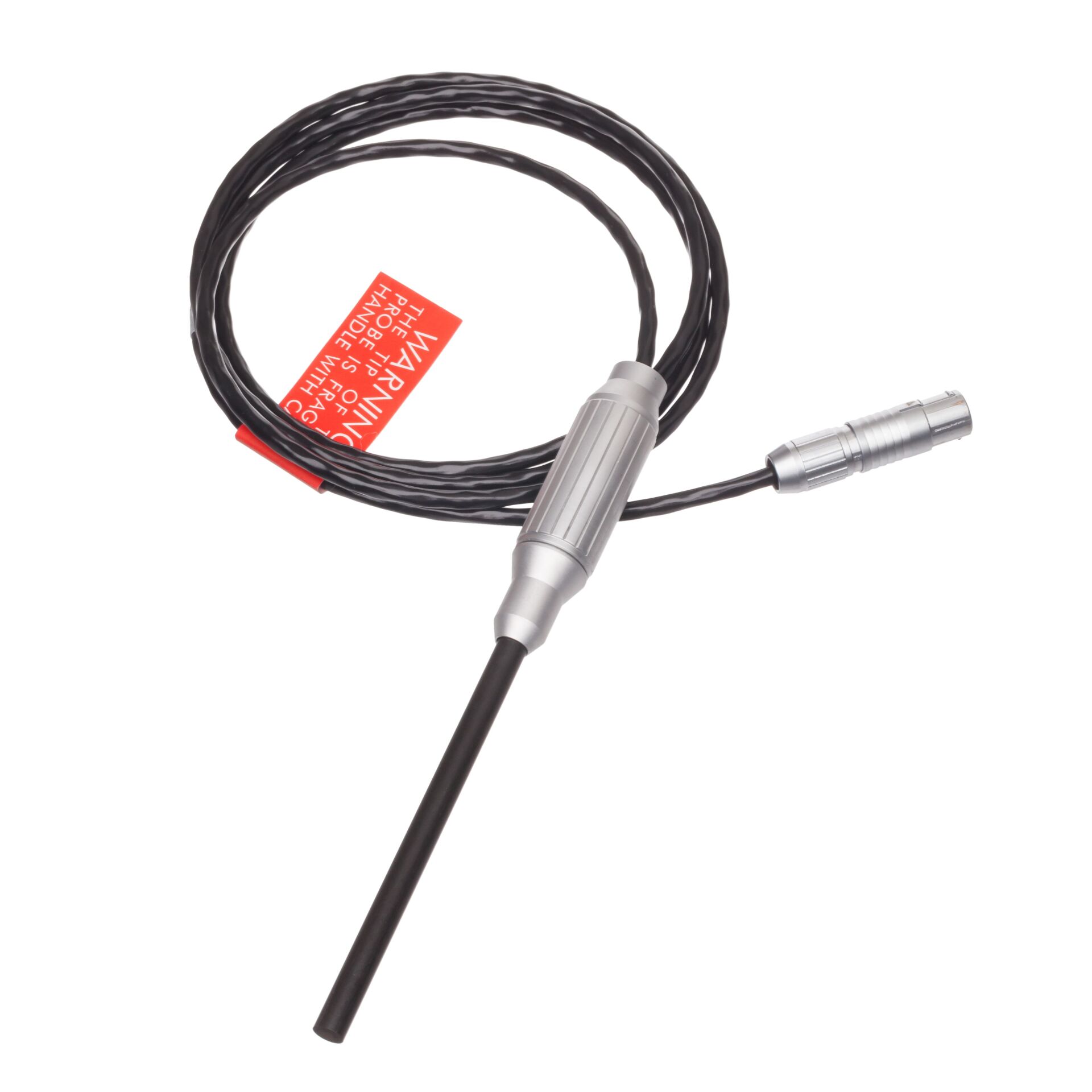

gaussmeter-sonde-mos51-3204_cunz

Low field probe

MOS51-3204
