GM5280 Gaussmeter-Teslameter

Gaussmeter 5280

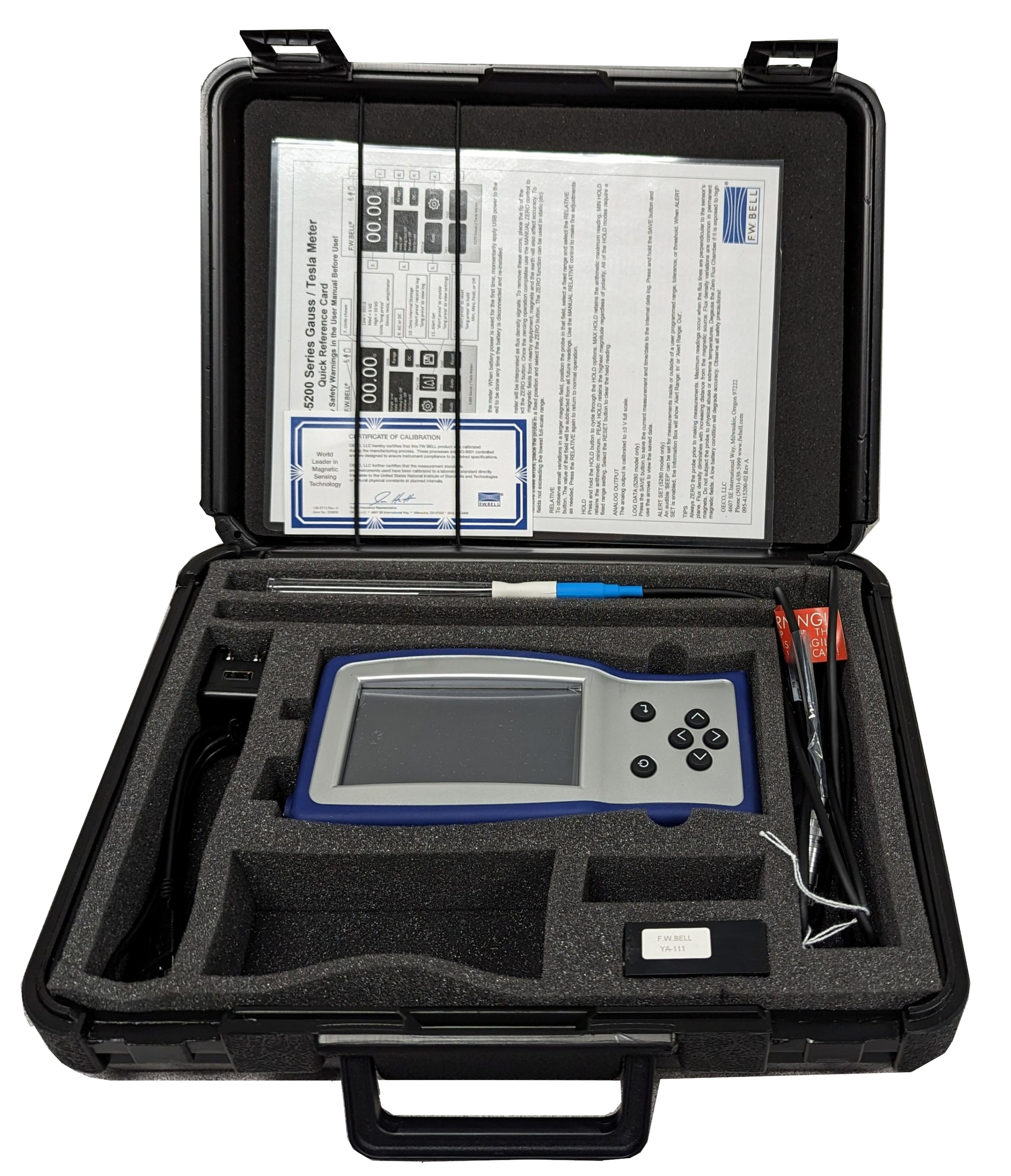

Gaussmeter 5280 case set, contains Gaussmeter 5280, transverse probe STD18-0404, zero gauss chamber YA-111 and international power adapter

Optionally, the device can be ordered with a calibration certificate


Features and Benefits of the Gaussmeter 5280
  • 4.3-inch LCD touchscreen
  • Probes interchangeable
  • automatic zeroing
    •
  • Min/Max/Peak
  • USB C 2.0
    •
  • Option for remote control via PC
    •
  • 512 kBit internal memory
    •
  • Audio/visual warning when area is reached
    •
  • 10 to 14 hours operating time with rechargeable Li-ion battery
    •


GM5270+Koffer+Sonde+Nullgausskammer

SPECIFICATION GAUSSMETER 5280

PARAMETER VALUE
Basic DC accuracy 1,1%
frequency DC - 25 kHz
Measuring range 1G - 30kG
resolution 1mG - 10G
units Gauss, Tesla, A/cm
Analog output And
operating temperatur 0°C to 50°C
Power supply rechargeable Li-ion battery
Dimension Gaussmeter ca. 20,32 x 9,78 x 4,75 cm
Weight Suitcase set here. 1.7kg

Suitable Hall effect probes for the Gaussmeter 5280

GM5280 Gaussmeter-Teslameter

axial probe

SAD 18-1904

GM5280 Gaussmeter-Teslameter

Transversalsonde

STD 18-0402

GM5280 Gaussmeter-Teslameter

Low field probe

MOS51-3204

GM5280 Gaussmeter-Teslameter

Transversalsonde

STD 18-0404
